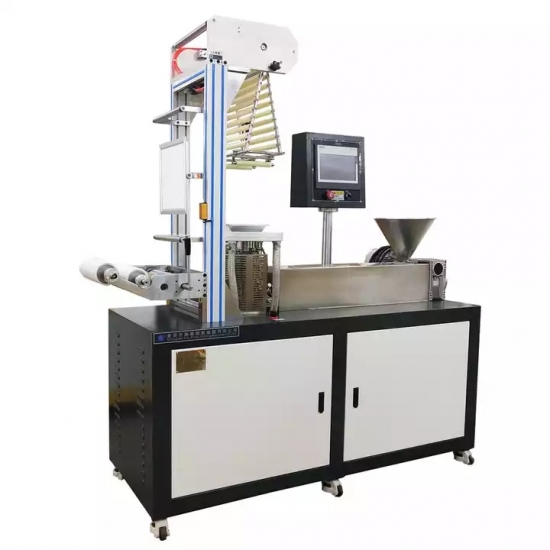

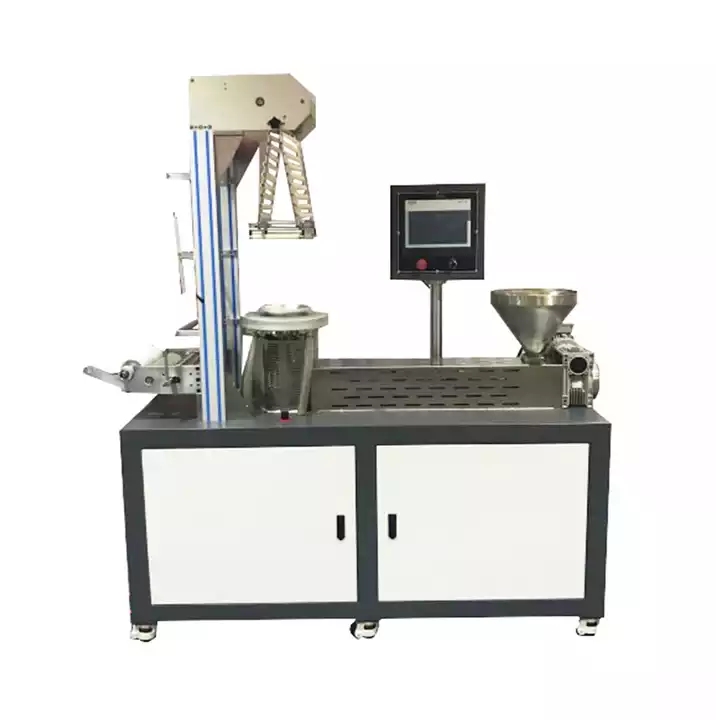

PVC/PP/EVA Lab Plastics Film Extruder
PVC/PP/EVA Lab Plastics Film Extruder PVC/PP/EVA Lab Plastics Film Extruder PVC/PP/EVA Lab Plastics Film Extruder PVC/PP/EVA Lab Plastics Film Extruder PVC/PP/EVA Lab Plastics Film Extruder PVC/PP/EVA Lab Plastics Film Extruder

PVC/PP/EVA Lab Plastics Film Extruder High Quality High Output Film Blowing Machine Hot Sale

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616

  • Item No.:

    ZS-432-25

  • Product Origin:

    China

  • Shipping Port:

    Xiamen

  • Min Order:

    1

  • Lead Time:

    T/T

  • Minimum Order Quantity:

    1

  • Operation method:

    PLC programmable touch mode

  • Speed:

    0-95rpm frequency conversion speed regulation

  • Voltage:

    3∮, AC380V

  • Warranty:

    1 year
contact now WhatsApp
Product Details

Product Description

The casting unit is a new type of equipment developed by our company, mainly composed of a small casting machine. The casting machine is a mechanical equipment for the molding of rubber and plastic material cast film products. It is mainly used in the fields of casting film product molding, casting material formulation development, and casting material performance research, such as conveying materials to flow The casting machine is made of cast film products. Its advantage is light and practical. During use, the rotation speed of the casting roller and the traction roller can be controlled by the frequency conversion motor, so that the conveying speed of the material can be adjusted to produce various sheet products that meet the requirements of users. This machine is mainly composed of main drive motor, transmission device, extrusion device, feeding hopper, electric control system, casting die, two-roll calendering and so on. Its working principle is: the material flows from the hopper into the plasticizing and extruding through the extruding device into a casting state, and then comes out from the host through the die, and is calendered by a two-roll calender.


Technical Parameters


Model
ZS-432-25
 Screw diameter
￠25
Length to Diameter Ratio
33:1
Screw Speed
0-95rpm frequency conversion speed regulation
Heating Zone
room temperature ~ 300 degrees, five zones heating, of which three zones cast aluminum heater, die head two zones
heater
Cooling Zone:
3 sets of multi-wing fan cooling
Electric Control System:
PLC programmable touch mode
Volume (W×D×H)
1000×700×800mm
Power Supply
3∮, AC380V
Weight
about 175KG
