Multi-functional Laboratory Electrostatic Spinning Machine-HANKER
Multi-functional Laboratory Electrostatic Spinning Machine Multi-functional Laboratory Electrostatic Spinning Machine Multi-functional Laboratory Electrostatic Spinning Machine Multi-functional Laboratory Electrostatic Spinning Machine Multi-functional Laboratory Electrostatic Spinning Machine

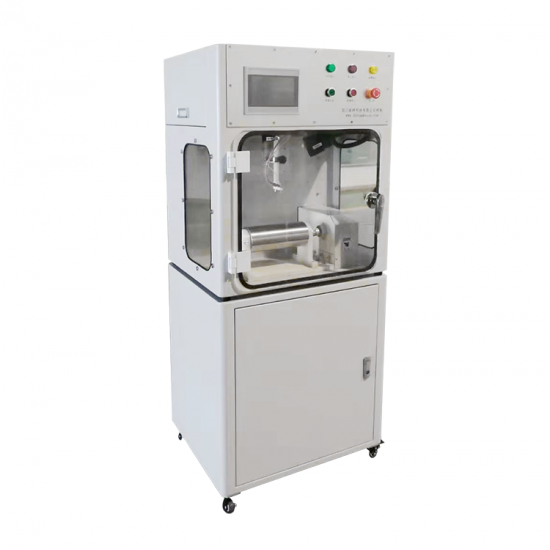

Multi-functional Laboratory Electrostatic Spinning Machine

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616


  • Item No.:

    CRTPM-M51

  • Product Origin:

    China

  • Shipping Port:

    Xiamen (Or any port in China)

  • Min Order:

    1

  • Lead Time:

    20 days

  • Minimum Order Quantity:

    1

  • Operation method:

    Semi automatic touch button

  • Screen:

    PLC control

  • Voltage:

    220/110

  • Warranty:

    1 year

  • Delivery Time:

    6-8Day

  • Packaging Details:

    Standard export wooden box
contact now WhatsApp
Product Details

An electrospinning machine is a device used to make nanofibers. It uses an electrostatic field to stretch a polymer solution or melt into fibers, the diameter of which can range from tens of nanometers to several microns. An electrospinning machine usually consists of a high-voltage power supply, a nozzle, and a receiver. During operation, the polymer solution is stretched by the electric field through the nozzle to form fibers that are collected on the receiver.
- Ability to prepare nanofibers: Electrospinning machines can prepare nanofibers with diameters ranging from tens of nanometers to several microns. These fibers have extremely high specific surface areas, which are conducive to adsorption and reaction.
- Controllable fiber morphology: By adjusting parameters such as electrostatic field strength and solution flow rate, the diameter, morphology and arrangement of the fibers can be controlled to meet the needs of different applications.
- Wide application: Electrospinning technology has a wide range of applications in nanotechnology, medicine (such as tissue engineering, drug release systems), filter material preparation, sensor preparation and other fields.



Product specifications


Product name
Selection of experimental electrospinning machine
Production model
Equipment model
CRTPM-M51
CRTPM-M52
CRTPM-M53
CRTPM-M54
Product positioning
Portable principle type
Standard test type
Full-function scientific research type
Production machine
Power supply
AC220V
AC380V
Maximum power (KW)
≤6
20-100
Dimensions (CM)
/
60*80*170
100*100*180
160*300*180
Loading method
Single syringe with gap
Two syringes with gap
Two injection systems
Continuous feed
Loading amount
1-10mL
(1-30mL)
(1 -30mL)*(1-12)
Continuous feed
Material heating
/
Optional
Optional
Optional
Spinneret
Detachable single needle
Detachable single to multiple needles, coaxial spinning
No Needle
Spinneret movement
Fixed
Reciprocating
Lifting + Reciprocating
Rotating
Raw material flow
0.1-20ml/h
0.1-50ml/min
100-1000ml/min
High voltage power supply
+30KV
+30KV
-30KV~+50KV
-30KV~+100KV
High power power pack
Collection unit
Roller + flat plate
Roller + flat plate
(roller optional)
Full series
Wide collection belt
Drum collector (CM)
D10*21 roller
D10*21 roller
Multiple specifications of rollers
/
Collection drum speed
50-1000r/min
50-1000r/min
50-2800r/min

Collection distance
5-30cm(Manual)
5-30cm(Manual)
5-30cm(Automatic)
5-30cm(Manual)
Plate movement
/
/
X/Y Scan
/
Fiber diameter
100nm-200nm
50nm-200nm
10nm-200nm
10nm-200nm
Environmental control
/
Optional temperature and humidity control
Temperature and humidity control
Clean space with temperature and humidity control
Control method
Decentralized independent control
Touch interface
Programmable touch interface
Programmable touch interface
Optional consumables
/
Needle
Nozzle/Collector
/
Optional accessories
/
Temperature and humidity control/nozzle/collector
/
