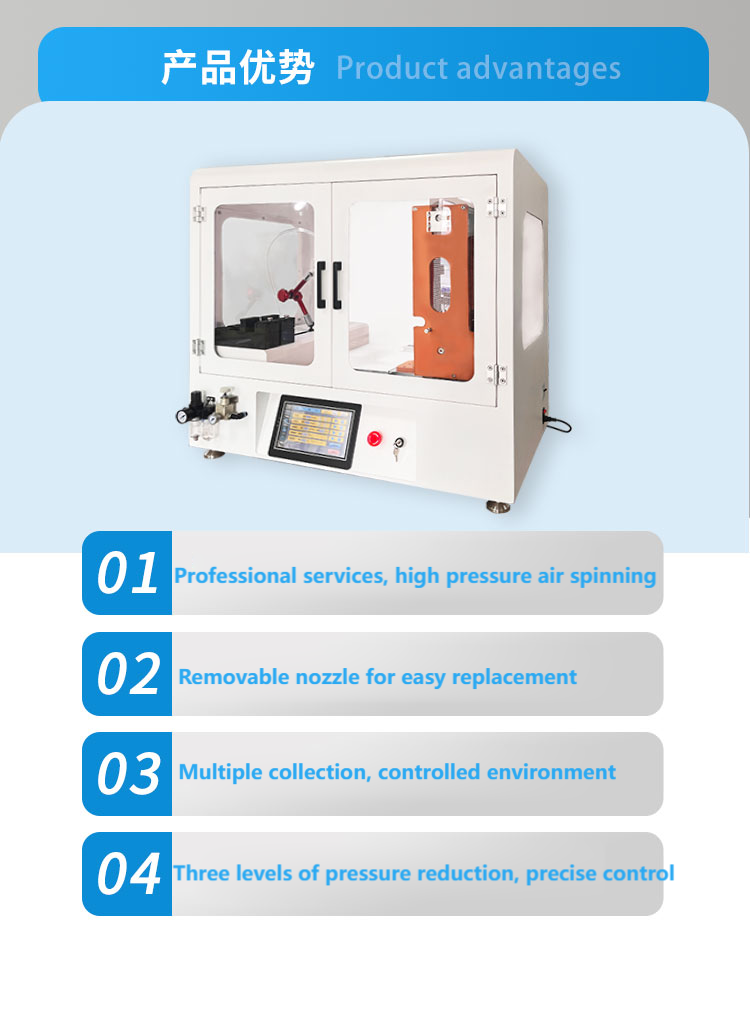

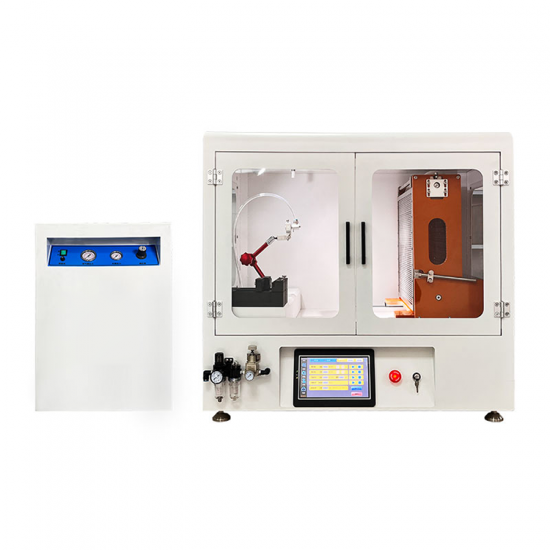

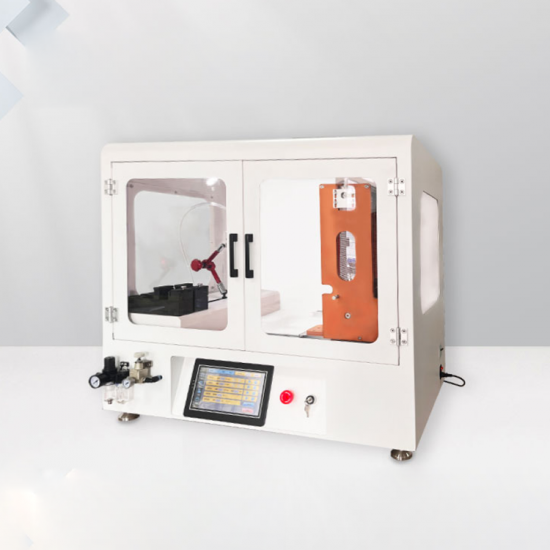

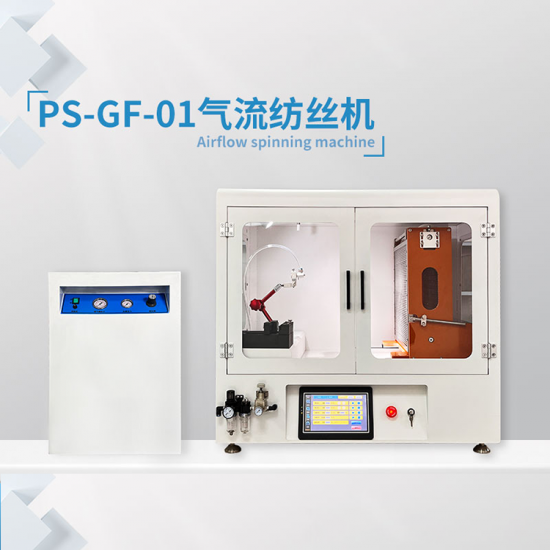

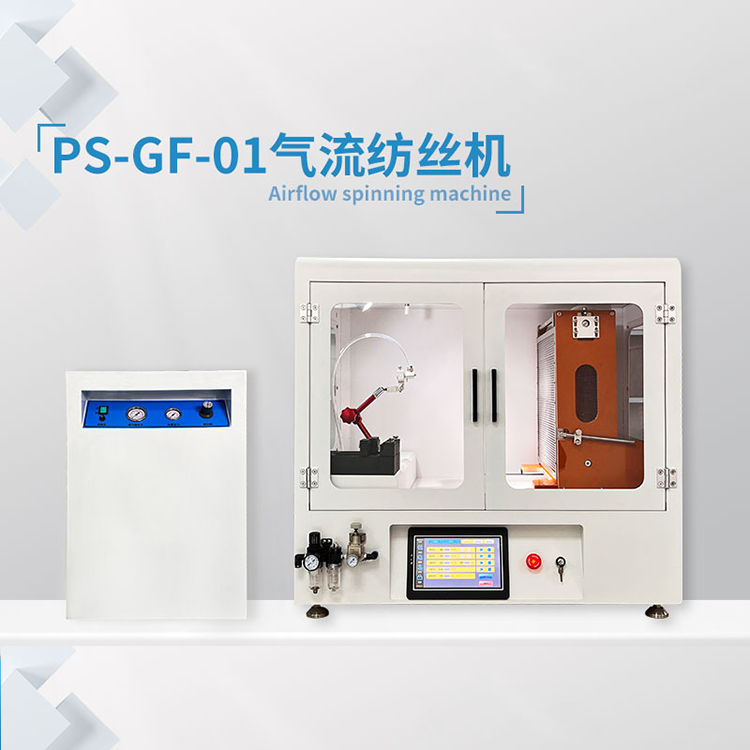

Air Spinning Machine

High Pressure Air Source

Compressed medium: air                         Maximum pressure: 8bar

Principle: Piston type oil-free compressor            Noise:42db

Discharge Capacity: 155L/min                     Tank capacity: 40(L)

Size:50*50*77cm                               Power:800W

Weight:50Kg

Propulsion equipment

Number of control groups:2               Number of channels:4

Syringe capacity:1~30 ml                 Minimum Flow Rate.0.001ml/min

Linear thrust:15kgf                      Minimum forward proximity: 0.529 μm (1/2 step)

Minimum step speed:1/30sec(1/2 step)      Accuracy: ±<1%

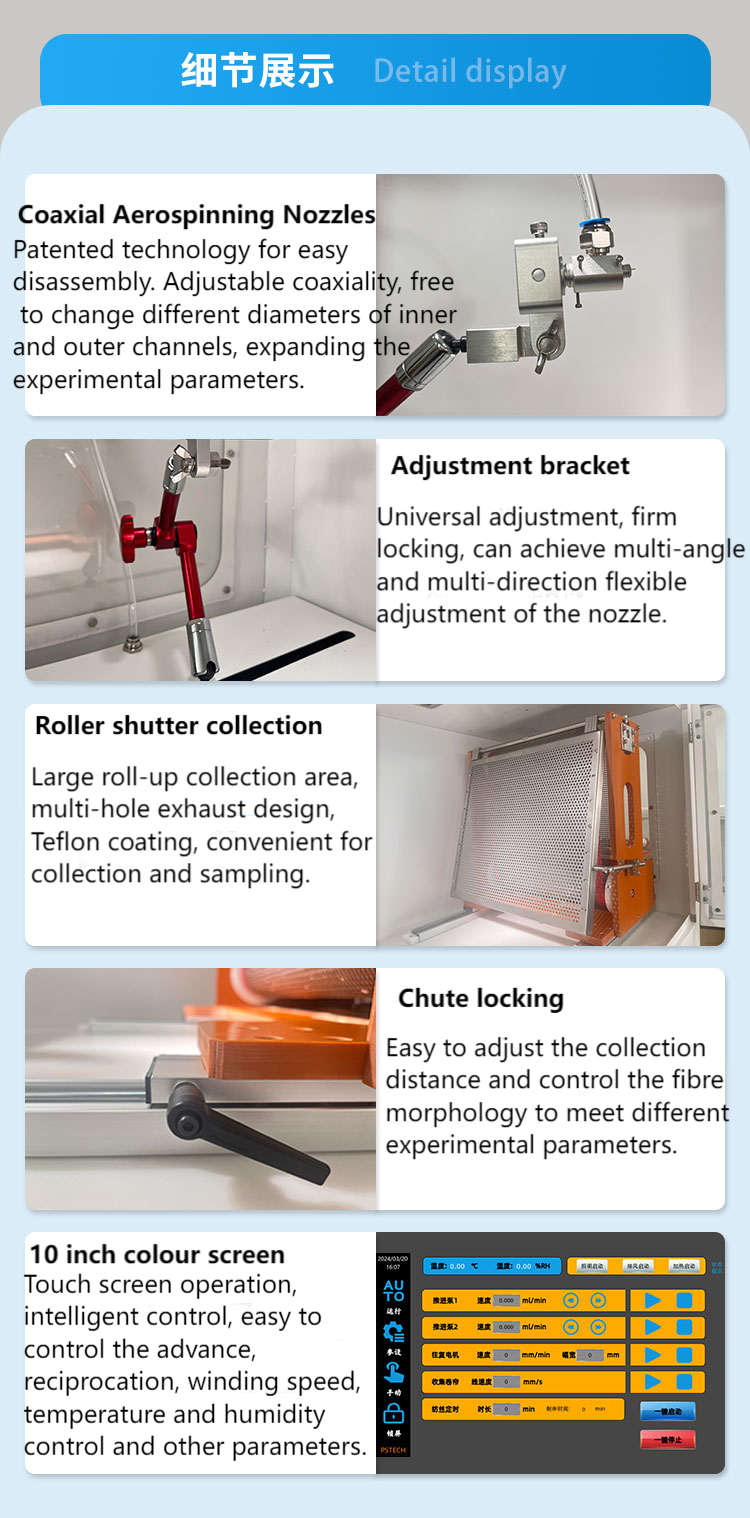

Spinning nozzle

Pressure resistance:10MPa

Coaxiality:Adjustable

Detachable design: Replaceable with non-diameter supply nozzle and air outlet nozzle.

Air outlet nozzle: inner diameter 1.5, 2, 3mm, 3 groups can be replaced.

Applicable Needle:15G-30G

Reciprocating motion

Stroke:0-400mm

Reciprocation parameter:0-2500mm/min

Reciprocating speed: Reciprocating time, reciprocating distance, the number of reciprocating adjustable

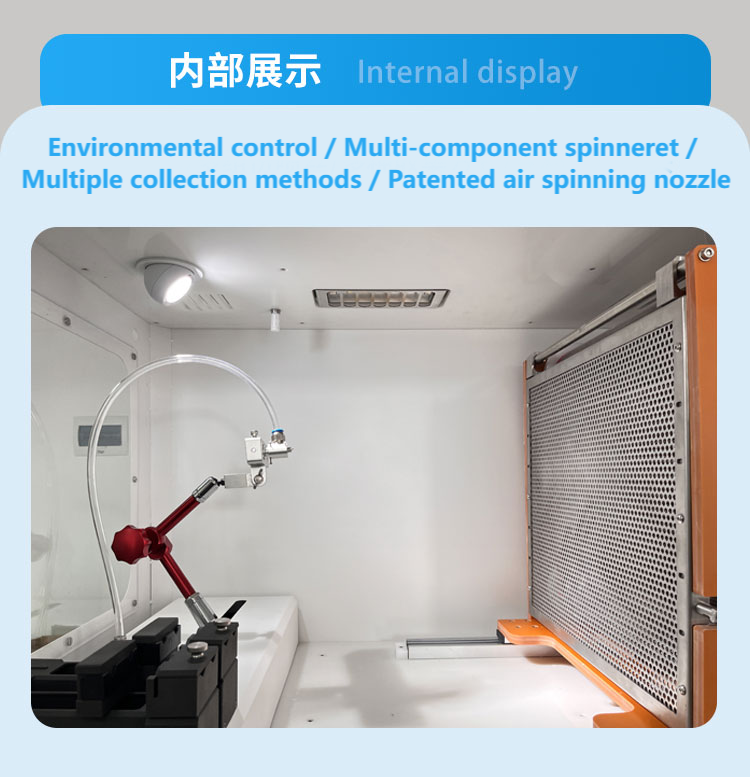

Environmental control

Air exchange air volume:100L/min

Humidity control: external dehumidifier, direct supply of dry gas. Minimum to 30%RH

Temperature control: infrared lamp heating, start and end temperature can be set

Collection device

Flat collecting device material: stainless steel

Size:400*400cm

Thickness:1.2mm

Perforation:5mm

Material of net curtain collection device: corrosion-resistant Teflon (base can be moved)

Rolling curtain collection size:400*900mm

Speed adjustment range:0~200mm/min

Dimension of main unit:1000*650*900mm
