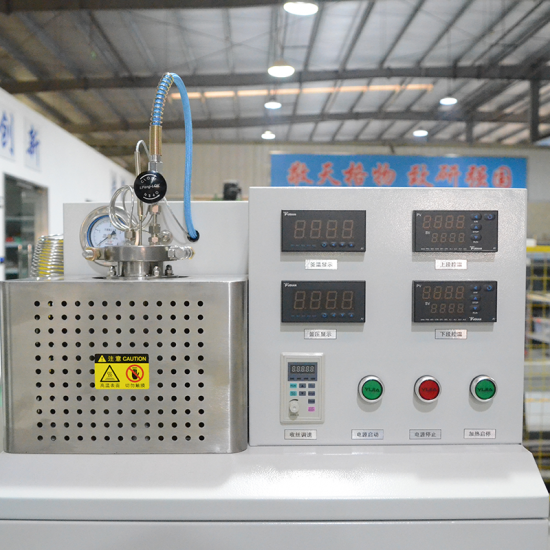

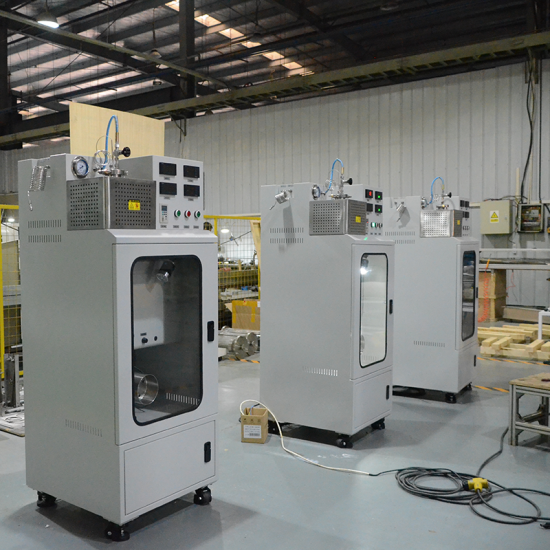

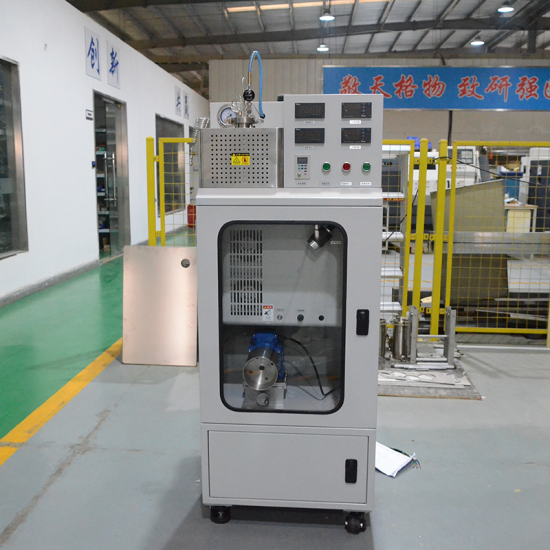

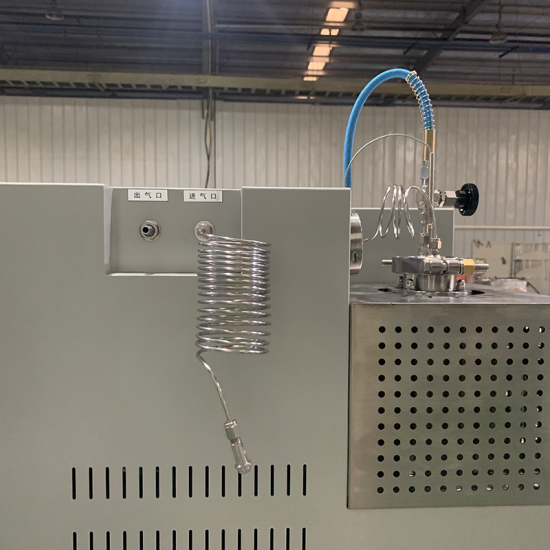

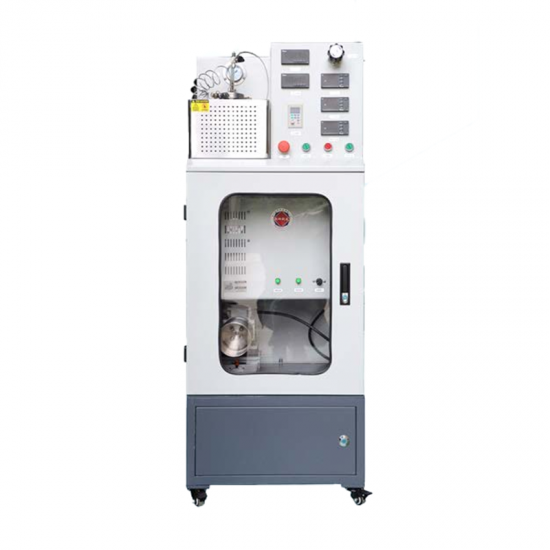

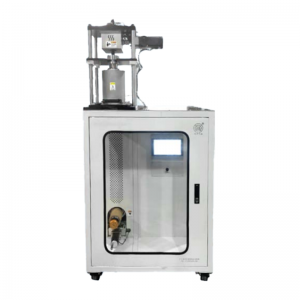

Manual Line Melt Spinning Machine Customizable-HANKER

Manual Line Melt Spinning Machine Customizable

Manual Line Melt Spinning Machine Customizable

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616

Item No.:
CRTPM-M11
Product Origin:
China
Shipping Port:
Xiamen (Or any port in China)
Min Order:
1
Lead Time:
7-10 days
Minimum Order Quantity:
1
Operation method:
Semi automatic touch button
Screen:
PLC control
Voltage:
AC220V,3KW
Warranty:
1 year
Delivery Time:
6-8Day
Packaging Details:
Standard export wooden box

contact now

Product Details

Melt spinning machines work by ejecting molten polymer through a nozzle and stretching it into fibers. The polymer is put into the melting device in solid or granular form, heated to liquid state, and then ejected through the nozzle at a certain pressure and speed to form a molten fiber bundle.
- High production efficiency: Due to the use of molten materials, melt spinning machines usually have relatively high production efficiency and are suitable for large-scale production.
- Wide adaptability: The ability to process various types of polymers makes it widely used in textile, industrial and medical fields.
- Adjustable fiber properties: By adjusting parameters such as nozzles and stretching speeds, the diameter and structure of the fiber can be controlled to meet the needs of different applications.

Product specifications

Product name	Melt spinning machine
Equipment model	CRTPM- M10	CRTPM- M11	CRTPM- M12	CRTPM- M21	CRTPM- M22
Product positioning	Melt flow indexer	Air pressure principle type	Air pressure standard type	Single plunger	Dual plunger
Power supply	AC220V			AC220V	AC380V
Maximum power (KW)	3	3.5	4.5	5.5	8
Dimensions (CM)		6060 150	7075 165	70100180
Loading method	Intermittent manual one-time filling
Loading amount	10-100g	10-200g	10-500g	30-500g	2*30-500g
Melt method		2-stage electric heating	3-stage electric heating	3-stage electric heating	2*3-stage electric heating
Melt temperature	330	330	450	330
Feeding method	Air pressure			Plunger
Pressure boost/metering	Self-contained pressure reducing valve		Precision pressure regulating valve	Plunger
Spinning pressure	<1.6		0.3-6	<8Mpa
Melt filtration	Stainless steel sintered filter
Fiber mold	Single hole flat plate	1-6 hole flat plate		Multi-hole flat plate	Multi-hole composite plate
Spinning tunnel		Parallel natural wind		Parallel ambient cold wind
Oil application				Oil tank + oil tanker / spinning oil tank + oil pump + oil nozzle
Line arrangement		Manual	Reciprocating wire collection	Integrated wire arrangement module
Reeling	Fixed shaft		Quick release paper roll	Integrated winder
Spinning speed	100-400		100-600	100-600	100-600
Secondary drafting				Optional
Control method	Touch screen	Full instrument panel	Touch screen	Hidden local instrument + programmable operating system + local touch screen + remote control (customers provide their own PC)
Safety protection	Over-temperature protection	Over-temperature/over-pressure protection
Optional supporting equipment	Air compressor/vacuum pump/cold water circulation pump/online diameter gauge/muffle furnace/ultrasonic cleaning machine/infrared thermometer/roots blower/air heater
Optional consumables	Filter plate/seal/distribution plate/spinneret/shovel plate/silicone oil spray/spinning oil/paper cylinder/sensor
Optional tools	Special tool for disassembling spinneret assembly/universal tool set
