Product Origin:
ChinaShipping Port:
Xiamen/ShanghaiMin Order:
1Voltage:

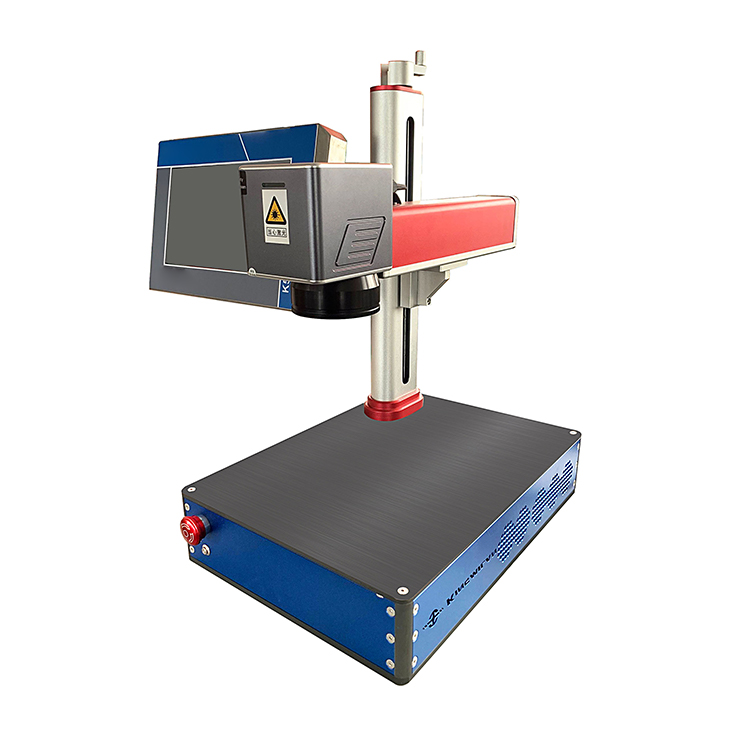

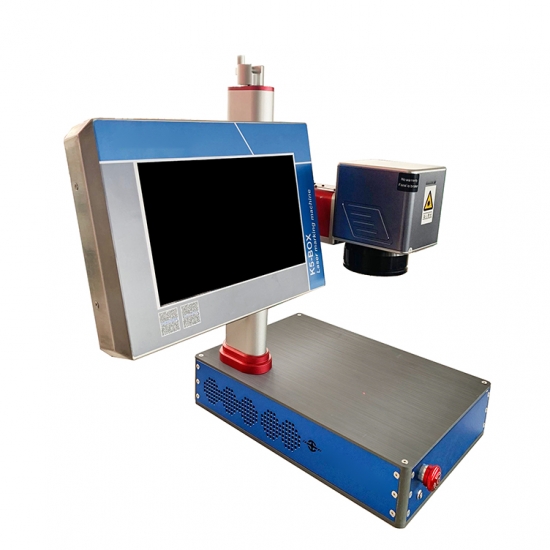

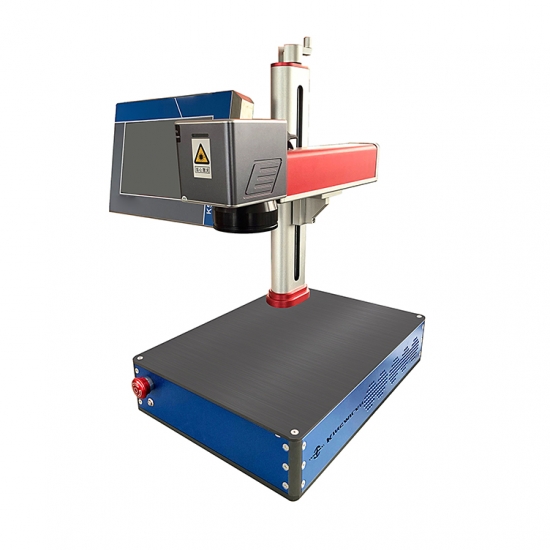

20W30W50WProduct details

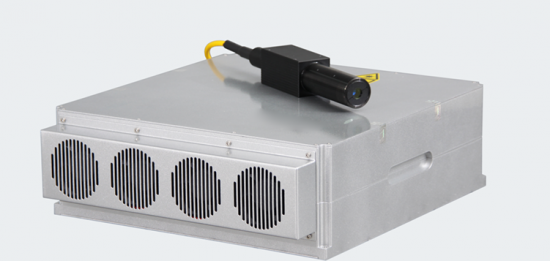

Laser Type
Fiber
Laser Wavelength
1.06μm
Beam
＜1.4M²
Laser Power
20W/30W/50W
Cooling method
Air cooling
Marking area
110mm×110mm/175mm×175mm
Focal distance
170mm
Min line-width
0.15mm
Min character
0.7mm
Marking speed
0-7000mm/s
Graphic format supported
PLT
Voltage
AC220V±10%
Frequency
50Hz/60Hz
Machine dimension
450mm×450mm×1300mm
Machine weight
80Kg （Estimate)
Work environment
Temperature: 0~45°C; Humidity: 5%-95% non-condensing water, no dust or dust less temperature
Power
1KW
Class of safety protection
IP54
Laser safety level
level 4
Adjustable height direction
0-450mm
Front and back direction adjustable distance
0-250mm
Marking angles
0°，45°，90°，180°
Product details
Product features

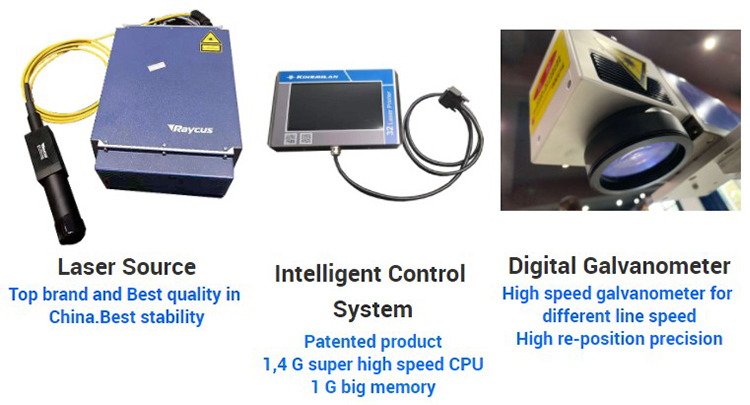

1. Equipped with EZCAD or SEACAD controller, easy operation
2. The service life of the laser is 100,000 hours, and the whole machine is used for 4-6 years
3. Industrial aluminum Stand,cast iron rack, beautiful and reliable
4. Protection power supply design, solve the damage caused by unstable power supply
5. strong wind cooling, the effect is 2 times that of ordinary air cooling
