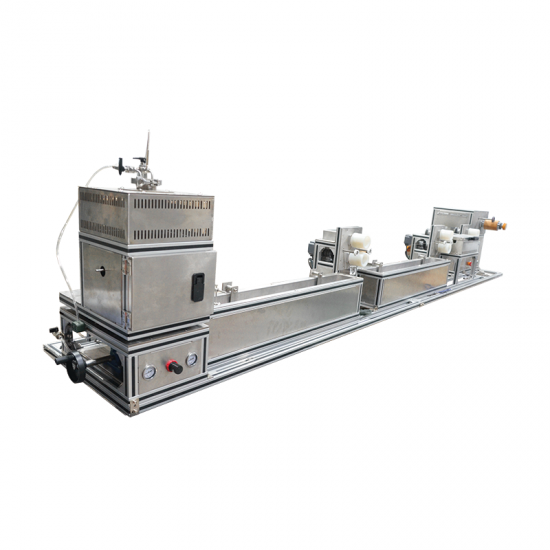

Standard Experimental Wet Spinning Machine

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616


  • Item No.:

    CRTPM-M43

  • Product Origin:

    China

  • Shipping Port:

    Xiamen (Or any port in China)

  • Min Order:

    1

  • Lead Time:

    7-10 days

  • Minimum Order Quantity:

    1

  • Operation method:

    Semi automatic touch button

  • Screen:

    PLC control

  • Voltage:

    AC220V,3KW

  • Warranty:

    1 year

  • Delivery Time:

    6-8Day

  • Packaging Details:

    Standard export wooden box
contact now
Product Details

The dry-wet spinning machine dissolves the polymer in a solvent to form a spinning solution, and extrude fibers through a spinneret. The fibers are first partially coagulated in the air, and then enter a coagulation bath to be completely cured. After subsequent stretching and processing, high-strength fiber products are finally formed.
- Excellent fiber performance: Combining the advantages of dry and wet spinning, the fiber is uniformly formed in the air and coagulation bath, with higher strength, toughness and elasticity, suitable for the production of high-performance fibers.
- Flexible process control: By adjusting the parameters of air coagulation and coagulation bath, the physical properties of the fiber, such as diameter, strength and elasticity, can be precisely controlled, and various types of fibers can be produced according to different needs.
- Wide range of applications: Able to process a variety of polymer materials, especially suitable for the production of fibers with complex structures or high performance requirements, such as aramid, carbon fiber, etc., widely used in aerospace, military protection and industrial fields.

Product specifications


Product name
Wet spinning machine
Dry spinning machine
Equipment model
CRTPM-M41
CRTPM-M43
CRTPM-M46
CRTPM-M47
Product positioning
Small and micro
Standard test type
Micro dry method
Medium dry method
Power supply
AC220V,3KW
AC380V,20KW
AC220V,6KW
AC220V,10KW
Dimensions (CM)
/
600*65*80
/
Dissolving kettle
/
2L reactor with stirring and heating
/
2L reactor with stirring and heating
Transfer pump
/
3cc gear pump
/
3cc gear pump
Coarse filtration
/
100 mesh sintered filter plate
/
100 mesh sintered filter plate
Degassing kettle/spinning tank
5- 140mm syringe
2L degassing kettle with stirring and heating
500mL degassing kettle with stirring and heating
2L degassing kettle with stirring and heating
Metering pump
Injection pump
1.2CC gear pump + cycloid gear reducer
1.2CC gear pump + cycloid gear reducer
1.2CC gear pump + cycloid gear reducer
Spinning assembly
Injection needle
gooseneck tube + pressure measurement + filtration + spinning cap can be coaxially spun
Filter + spinning cap
Filter + spinning cap
Spinning assembly lifting
Liftable
liftable
Liftable
Liftable
Spinning tunnel
Electric heating temperature control (RT-300)
Fin heating temperature control
Coagulation bath (mm)
500*50*50 stainless steel sink
1200*120*160 stainless steel sink with heating and temperature control
/
/
Sizing tank
/
/
/
/
Washing tank (mm)
500*50*50 stainless steel sink
1200*120*160 stainless steel water tank with heating and temperature control
/
/
Drying
One set of dry heating shaping
Two sets of dry heating shaping
/
/
Drafting
Dry stretching (two sets)
Two sets of dry drafting rollers
/
/
Oil-applying device
Yes
Yes
Line arrangement
Reciprocating wire arrangement
Integrated winder
Integrated winder
Reeling
Fixed wire collection drum
Integrated winder
Integrated winder
Spinning speed
1-10m/min
50-80m/min
30-800m/min
Control method
Fully instrumented
Touch screen + remote transmission
Touch screen + remote transmission
Safety protection
Over-temperature protection
Over-temperature power off/over-pressure power off
/
/
Optional supporting equipment
Air compressor/vacuum pump/cold water circulation pump/online diameter gauge/ultrasonic cleaning machine/infrared thermometer
Optional consumables
gooseneck tube/filter plate/spinning cap/seal/sensor
