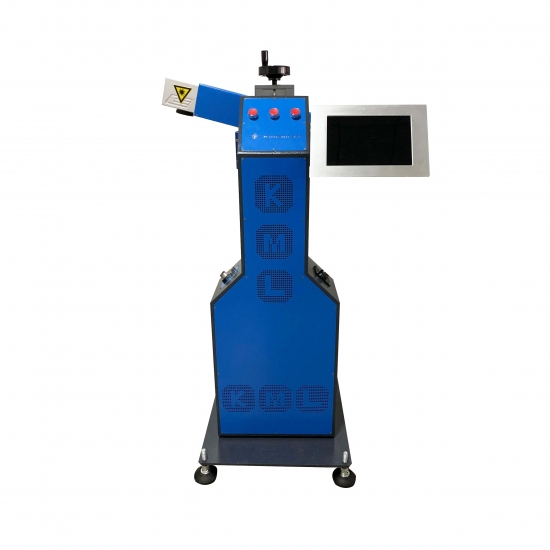

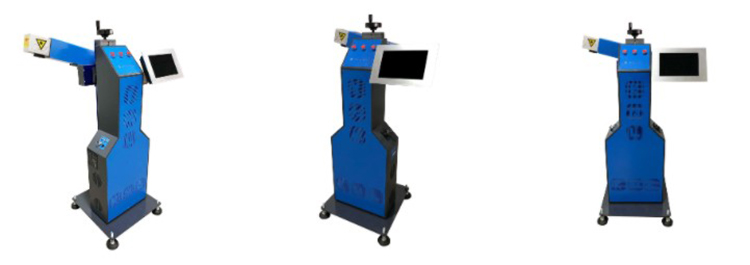

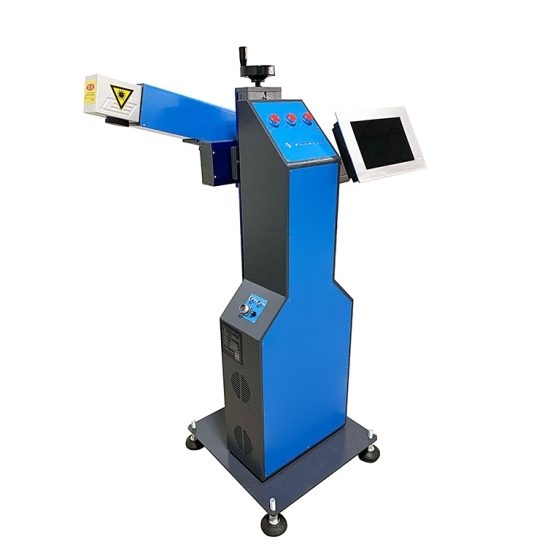

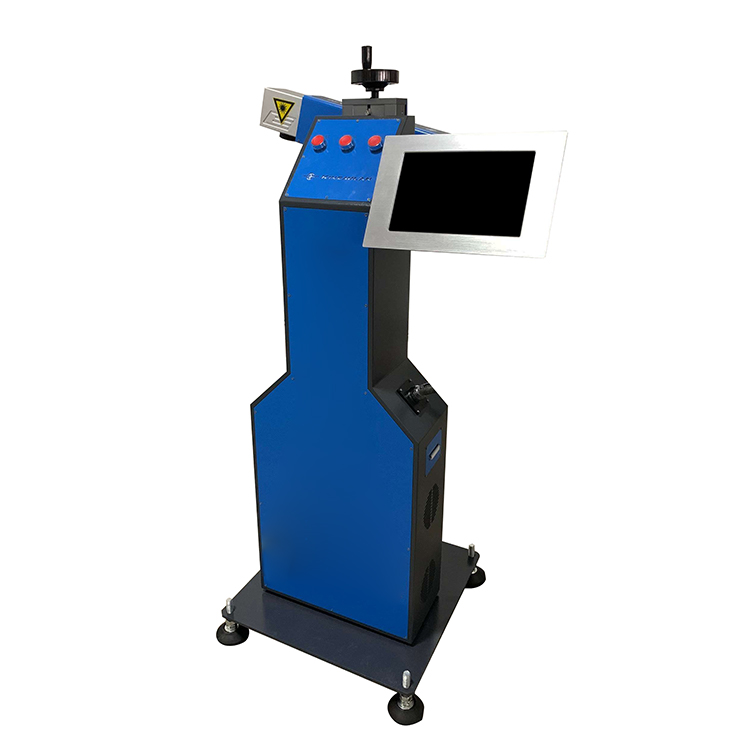

Fiber Laser Printing Machine for PVC PE PPR Pipe

Hot Sale 20w 30w 50w Fiber Laser Printing Machine for PVC PE PPR Pipe High Quality Intelligent Control Screen

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616

Product Origin:
China
Shipping Port:
Xiamen/Shanghai
Min Order:
1
Voltage:
20W/30W/50W
Warranty:
1

contact now

Product Details

Product Description

Laser Type	Fiber
Laser Wavelength	1.06μm
Beam	＜1.4M²
Laser Power	20W/30W/50W
Cooling method	Air cooling
Marking area	110mm×110mm/175mm×175mm
Focal distance	170mm
Min line-width	0.15mm
Min character	0.7mm
Marking speed	0-7000mm/s
Graphic format supported	PLT
Voltage	AC220V±10%
Frequency	50Hz/60Hz
Machine dimension	450mm×450mm×1300mm
Machine weight	80Kg （Estimate)
Work environment	Temperature: 0~45°C; Humidity: 5%-95% non-condensing water, no dust or dust less temperature
Power	1KW
Class of safety protection	IP54
Laser safety level	level 4
Adjustable height direction	0-450mm
Front and back direction adjustable distance	0-250mm
Marking angles	0°，45°，90°，180°

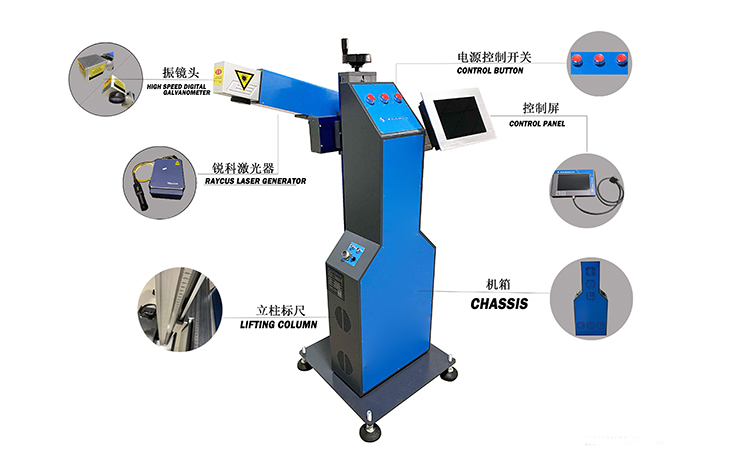

Product details

Product features

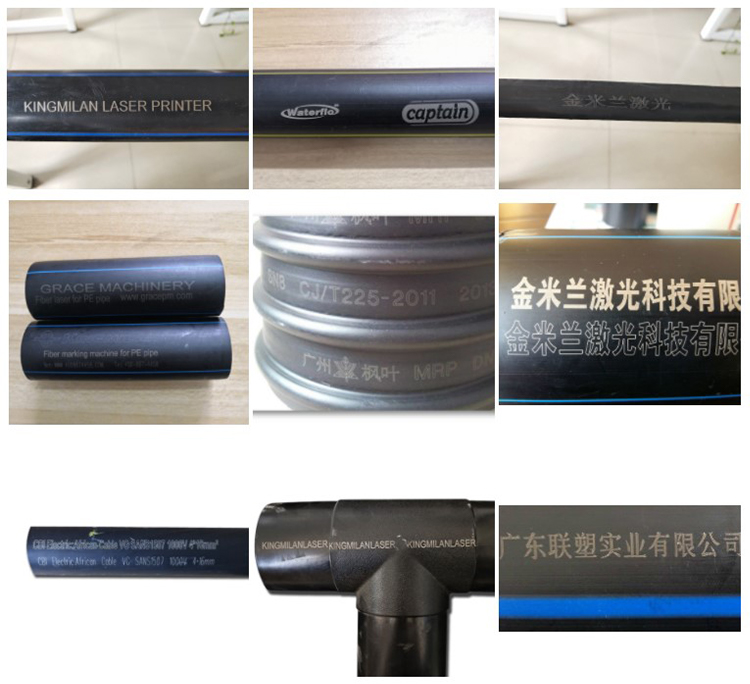

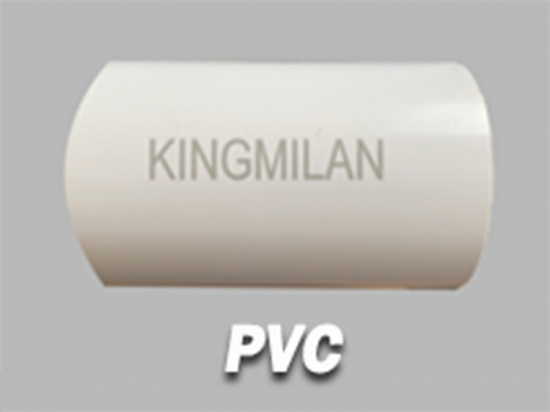

1.Mark on most metal materials and non-metal materials like:PE/PVC/HDPE etc

2.laser life can up to 100000 hours

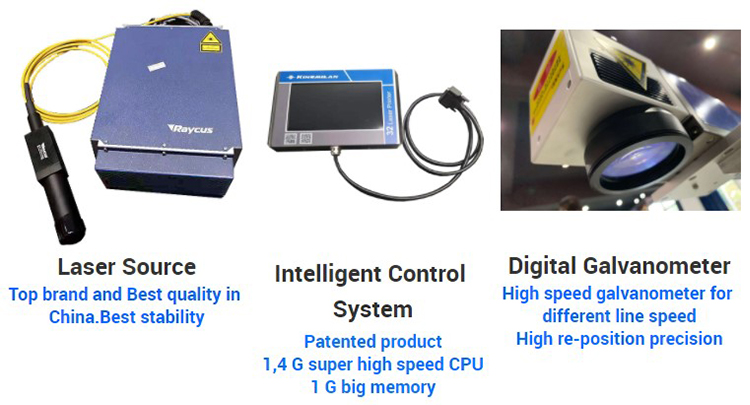

3.Windows-based marking software. real-time monitoring the laser power and pulse frequency
4.Small size,stable and reliable marking system, free- maintenance
5.Marking contents include text, graphics, pictures, serial numbers, bar codes, or it’s combinations
6.High-performance digital galvanometer scanning system,perform high-speed and high-precision
7.It is in line with international safety and operating standards
