Automatic paper box capsule blister packing machine tablet softgel box packing machine

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616

Product Origin:
China
Shipping Port:
Xiamen/Shanghai
Min Order:
1
Speed:
50 to 100 Boxes/Min
Voltage:
220V 50Hz (Customized)
Warranty:
1 year
Dimension(L*W*H):
3100*1100*1550 mm

contact now WhatsApp

Product Details

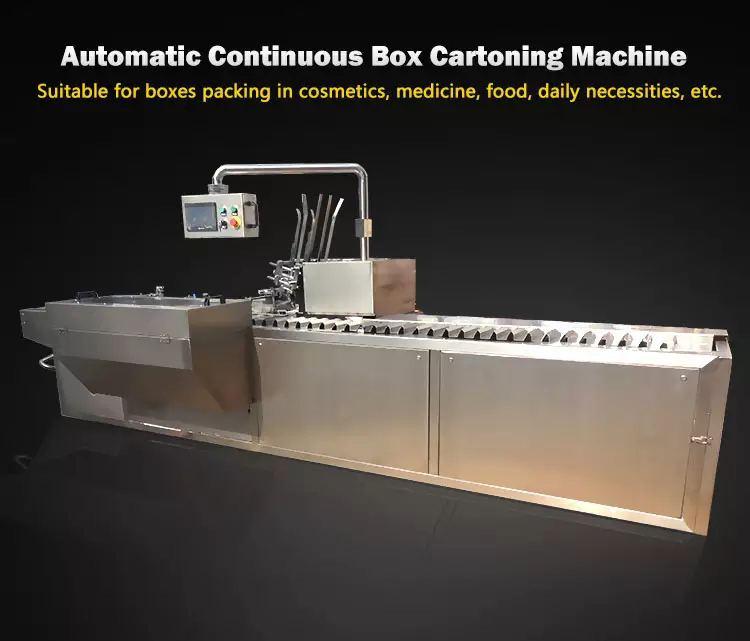

Automatic paper box capsule blister packing machine tablet softgel box packing machine

Boxing Packing Machine is automatic high speed continuous cartoning machine which is high performance product incorporates pneumatic, photo, electric, mechanic in one. It suitable for automatic inserting ALU-PVC blister, bottle, soft tube, soft AL/AL strips and pouch into carton, also can link to matching machine to form production line.

Specification

Automatic paper box capsule blister packing machine tablet softgel box packing machine
Model	HTZH-80	HTZH-100	HTZH-120	HTZH-200
Box size	L:49-120mm W:30-80mm H:14-50mm	L:5-220mm W:20-120mm H:12-70mm	L:70-180mm W:35-85mm H:14-50mm	L:70-200mm W:35-75mm H:15-70mm
Speed	40-80 pcs/min	50-100 pcs/min	50-120 pcs/min	60-200 pcs/min
Power	1.5kw	1.5kw	1.5kw	5kw
Box quality	/	250-350 g/square	250-350 g/square	300-350 g/square
Dimension	130012001500 mm	430015001650 mm	310011001550 mm	407016801680 mm
Wight	950kg	1200kg	1400kg	3000kg
Voltage	220V/380V/50Hz	380V/50Hz	220V/50Hz	380V/50Hz
Air pressure	/	0.5-0.7Mpa	≥0.6Mpa	0.5-0.7Mpa
Product Application	It is widely used for different packing including drug, food, commodity and cosmetic. For drug industry such as: cover box for solid torch and capsule, soft box for liquid paste, grease and colloid, tray box for vial, ampule bottle, and injector, as well as bottle box for solid and liquid drug and bag bx for powder and grain products. For food field such as: carton for cans, sweet, chocolate, candy, biscuit, wine, and freezing food, and so on. For commodity and cosmetic industry such as: carton for cream, grease, lotion, colloid, soap, lamp, computer floppy disk.
