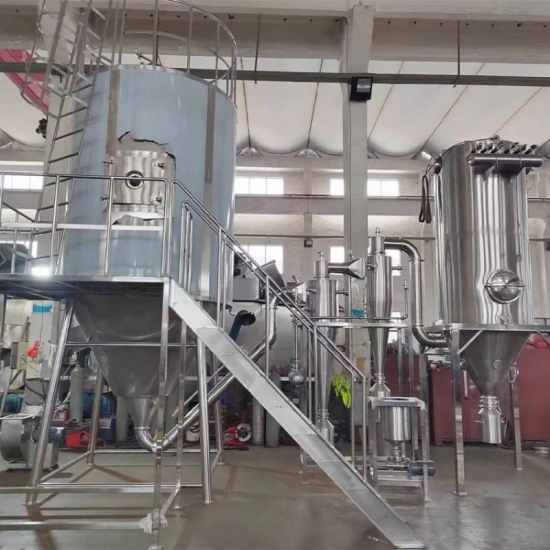

Automatic Multifunctional Stainless Steel Large Centrifugal Spray Dryer-HANKER

Automatic Multifunctional Stainless Steel Large Centrifugal Spray Dryer

Automatic Multifunctional Stainless Steel Large Centrifugal Spray Dryer

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel: +86 18030169616

Email: allen@crtopmachine.com jackson@crtopmachine.com

Min Order:
1
Minimum Order Quantity:
1
Operation method:
PLC
Screen:
Touch Screen
Capacity:
50L
Warranty:
1 year

contact now WhatsApp

Product Details

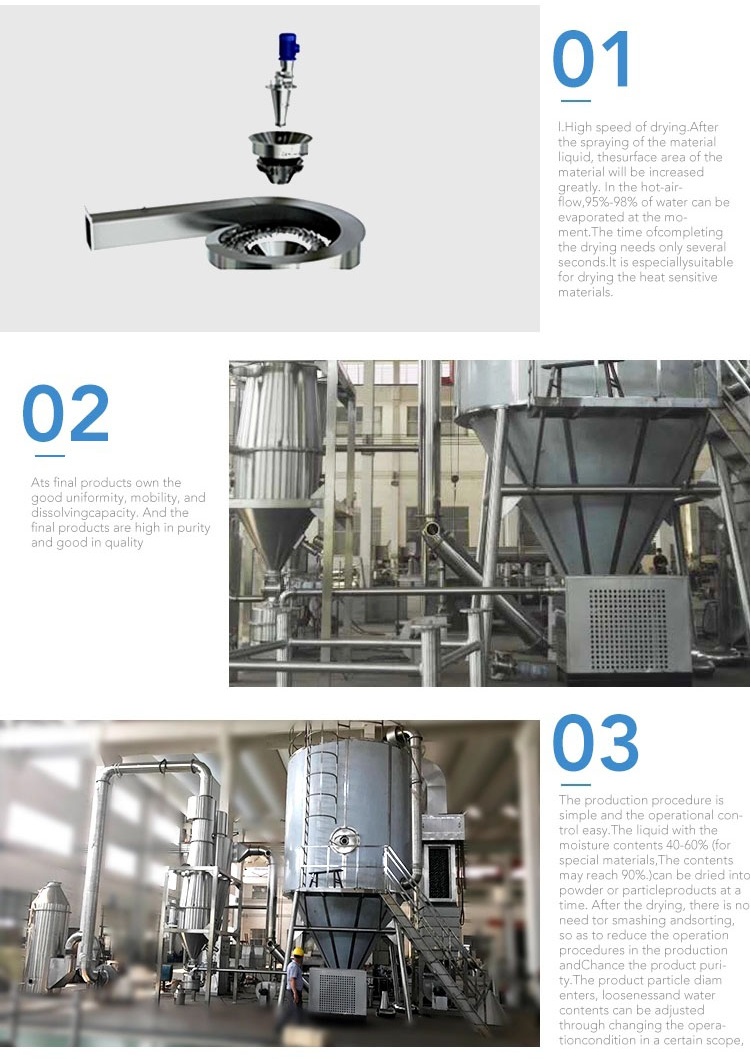

Centrifugal spray dryer has a high degree of automation, is easy to operate, and has good product quality. It is suitable for solutions, emulsions, suspensions, and even viscous liquid materials.The centrifugal spray dryer uses a centrifugal atomizer to dry certain liquid materials. It is one of the most widely used dryers in industrial production. Spray drying is the most widely used process in liquid process forming and drying industries. It is most suitable for generating powdered and granular products from solutions, emulsions, suspensions, and pumpable lake-like liquid raw materials.

Model	CRT-SD05L	CRT-SD25L	CRT-SD50L	CRT-SD150L	CRT-SD200-2000L
Inlet temperature	140-350 Self control
Outlet temperature	80-90
Water evaporation (kg/h)	5	25	50	150	200-2000
Centrifugal spray head transmission type	Compressed air transmission	Mechanical transmission
Speed (r.p.m)	25000	18000	18000	15000	8000-15000
Spray disc diameter (mm)	50	120	120	150	180-240
Heat source	electricity	Steam + Electricity	Steam + electricity, oil, gas, hot air furnace
Electric heating power (kw)	9	36	72	99
Dimensions (L×W×H)	1.8×0.93×2.2	3×2.7×4.6	3.5×3.5×4.8	5.5×4×7	Determined according to actual situation
Dry powder recovery (%)	≥95
