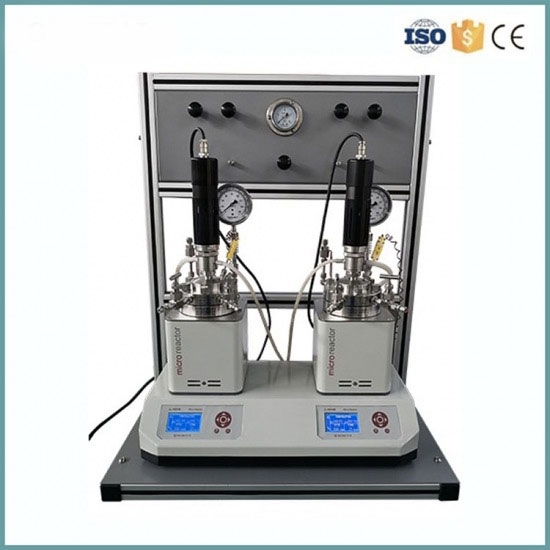

250ml Parallel High Pressure Reactor With 2 Reaction Kettles

New Products
Latest News
Introduction of Solid Fermentation Tank

Introduction of Solid Fermentation Tank

A solid fermentation tank is a device used in the solid fermentation process, which is widely applied in various fields such as food, medicine, and agriculture. Here is an introduction to it: - Struct...


Parallel High Pressure Reactor With 2 Reaction Kettles
Parallel High Pressure Reactor With 2 Reaction Kettles Parallel High Pressure Reactor With 2 Reaction Kettles

250ml Parallel High Pressure Reactor With 2 Reaction Kettles

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616


  • Item No.:

    OLT-SF-2

  • Product Origin:

    China

  • Shipping Port:

    Xiamen/Shanghai

  • Min Order:

    1

  • Model Number :

    OLT-SF-2

  • Minimum Order Quantity:

    1

  • Capacity:

    250ML

  • Use pressure:

    10Mpa

  • Service temperature:

    RM-300 ℃

  • Lead Time:

    6-8 Day
contact now WhatsApp
Product Details

The CRT-SF-2 hydrogenation catalytic parallel reactor achieved parallel reaction of multiple kettles. This design not only solves the parallel control problem of the gas flow in the heterogeneous catalytic reaction, but also makes the reaction results of the various reactors in the multi-reactor have strong comparability, and also realizes the independent controllability of each kettle. The automatic cooling function satisfies the difficult control conditions of a large amount of exothermic reaction of the reaction medium, increases the success of the experiment, and has a unique technical specialty, which makes the reaction process more controllable and safe.

Model

OLT-SF-2

Type

Bench type high temperature &high pressure

Volume

250mL

Reaction kettles

2

Temperature range

RM-300 ℃

Heating tpe

Module electric heating

Stirrer speed

0-1200rpm(stepless speed regulation)

Stirrer type

Jack-in soft drive magnetic coupling mechanical agitation (anchor or paddle)

Max. Working Pressure

10Mpa is standard, Max 30Mpa can be customized

Material

316L stainless steel as standard material


MRSC-EasyChem Controlling system

Timing:0-999min/h

LCD display: temperature, rotating speed, reaction time

Positive and negative two-way stirring

Overall dimension

360 mm x 340 mm x550 mm

Power supply

108 - 240 V AC,50 - 60 Hz


There are 2 stations,3 stations, 4 stations, 6 stations and 8 stations. The number of other stations can be customized.





Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
