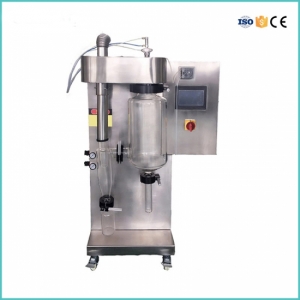

Lab small spray dryer:Assist enterprises in reducing costs and increasing efficiency

Lab small spray dryer:Assist enterprises in reducing costs and increasing efficiency

As a leading manufacturer of drying equipment in China, Xiamen Crtop Machine Co., Ltd. has been deeply involved in the industry for 20 years. Relying on its own research and development center and int...


Labotary Double Layer Glass Reaction
Labotary Double Layer Glass Reaction Labotary Double Layer Glass Reaction Labotary Double Layer Glass Reaction Labotary Double Layer Glass Reaction Labotary Double Layer Glass Reaction

1L 2L 3L 5L Mini Labotary Double Layer Glass Reaction

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616


  • Item No.:

    OLT-JGR-20F

  • Product Origin:

    China

  • Min Order:

    1

  • Lead Time:

    1-3 days

  • Model Number :

    OLT-JGR-20F

  • Minimum Order Quantity:

    1

  • Capacity:

    2-200L

  • Warranty:

    1 year
contact now
Product Details

JGR-F Series Decarboxylation Reactor

The crystallization process is a commonly used glass reactor for biochemical refinement, which combines the functions of the reactor and the filter. Lab1st crystallization reactor can make crystallization concentration, distillation, reflux, separation and purification which is an ideal instrument for oil processing.

Product Paramenters
Model
JGR-20F
JGR-30F
JGR-50F
JGR-100F
JGR-200F
Reaction Capacity (L)
2~20
5~30
5~50
10~100
30~200
Jacketed Volume (L)
6
10
16
30
40
Total (pcs)
5+1
5+1
5+1
5+1
5+1
Stirrer Port
50#
50#
50#
60#
60#
Air charging valve
34#
34#
34#
34#
34#
Solid feeding Port
80# Flange
Thermometer Tube
DN25 Flange
Reflux Separator
50#
50#
50#
50#
50#
Ball Mill Mouth
Condenser Port
34#, spiral condenser
Constant Pressure
Drop Funnel
40#,1000ml
40#,2000ml
40#,2000ml
40#,2000ml
10L
Filter Flate
PTFE 1mm
Filter Parts
PTFE Sand core filter plate （25μm)
T-polyester/T-polyester filter cloth （2μm）
Discharge port
OD:32mm, ID:22mm

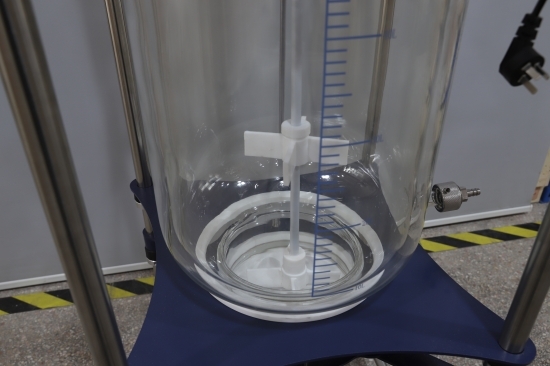

PTFE Stirrer
Four-blade Type

Product Details

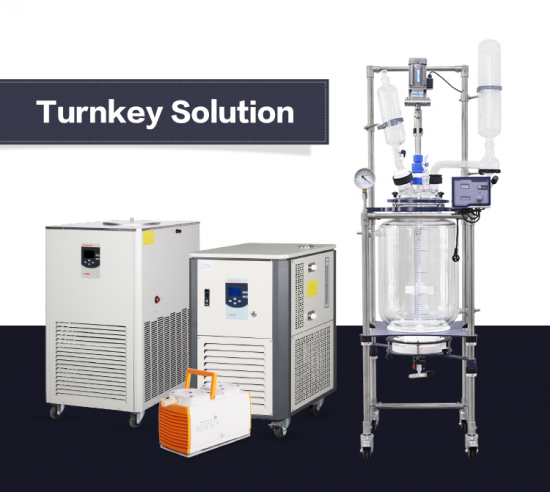

Turnkey Solution
